160AC-FG

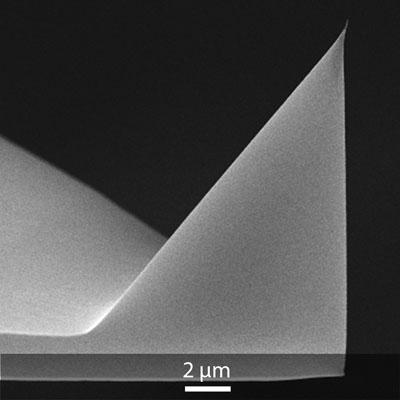

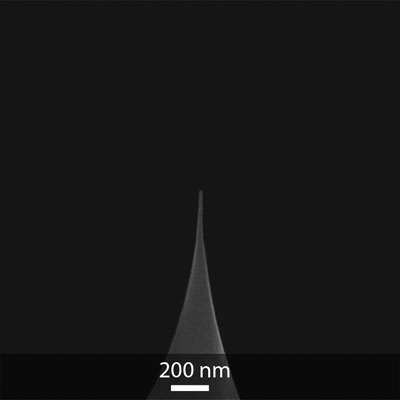

Probe

  • 8 nm
  • 8 nm
  • < 10 nm
  • 12 - 16 µm
  • n-type silicon
  • 0.01 - 0.025 Ohm*cm
  • Gold

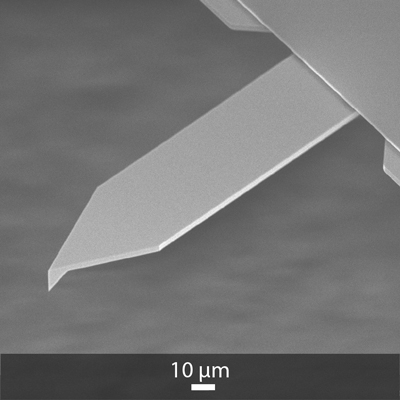

Cantilever



Cantilever Resonance Frequency, kHz Force Constant, N/m Length
l ± 5,
µm 		Width
w ± 3,
µm 		Thickness
t ± 0.5,
µm
min typ max min typ max
High aspect ratio AC mode cantilever160AC-FG Series 200 300 400 8 26 57 160 40 4
