3XC-GG
Probe
- 8 nm
- < 30 nm
- 12 - 16 µm
- n-type silicon
- Gold
- Gold
-
MikroMasch Product Screencast on OPUS 3XC Series
MikroMasch Product Screencast on OPUS 3XC Series, presented by Dr. Penka Terziyska, Product Manager
www.spmtips.com

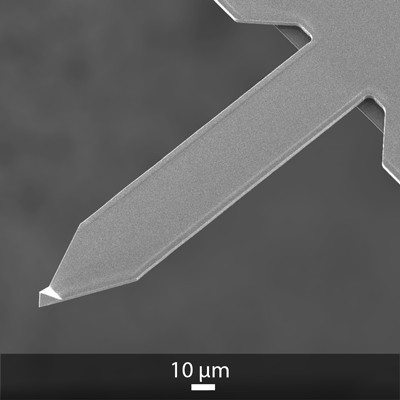

Cantilever
| 3XC-GG, Cantilevers |
Resonance Frequency, kHz | Force Constant, N/m |
Length
l ± 5, µm |
Width
w ± 3, µm |
Thickness
t ± 0.5, µm |
||||
|---|---|---|---|---|---|---|---|---|---|
| min | typ | max | min | typ | max | ||||
| Contact mode cantilever | 11 | 17 | 22 | 0.1 | 0.3 | 0.6 | 500 | 30 | 3 |
| Standard tapping mode cantilever | 100 | 150 | 200 | 2.8 | 9 | 21 | 175 | 40 | 3 |
| Soft tapping mode cantilever | 50 | 75 | 100 | 0.75 | 2.5 | 5.3 | 240 | 30 | 3 |
