55AC-NN

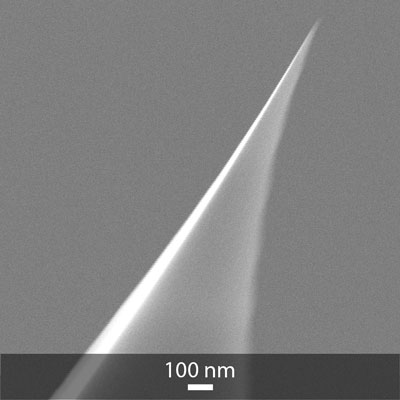

Probe

  • 8 nm
  • 8 nm
  • < 7 nm
  • 12 - 16 µm
  • n-type silicon
  • 0.01 - 0.025 Ohm*cm

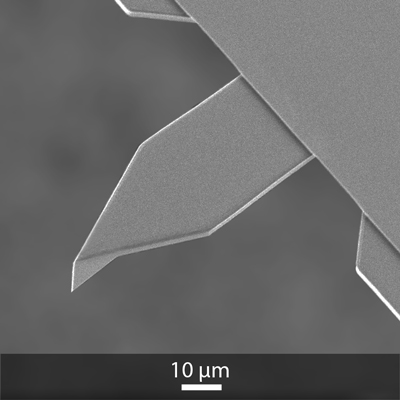

Cantilever



Cantilever Resonance Frequency, kHz Force Constant, N/m Length
l ± 5,
µm 		Width
w ± 3,
µm 		Thickness
t ± 0.5,
µm
min typ max min typ max
High frequency tapping mode cantilever55AC-NN Series 650 1200 1850 35 85 215 65 31 2.9
