ScanAsyst®* AFM Probes

  • SelfAdjust-Air AFM cantilever close-up
    SelfAdjust-Air AFM cantilever close-up
    SelfAdjust-Air AFM tip close-up
    SelfAdjust-Air AFM tip close-up

    selfAdjustBanner

    Typical AFM tip radius
    2nm
    Maximum AFM tip radius
    8nm
    Full cone angle
    40°
    Total AFM tip height
    Nom: 5µm
    Range: 4-7µm
    Effective AFM tip height
    Nom: 2.5µm
    Range: 2-3.5µm
    AFM tip material
    n-type silicon
    AFM cantilever material
    Silicon-based amorphous thin layer
    Detector coating
    Aluminum

    The SelfAdjust-Air AFM cantilevers feature finely tuned properties, optimal for ScanAsyst®* mode operation.

    The silicon AFM tips have trihedral shape and the sharpest silicon apexes in our entire product range with typical radius of curvature 2nm and maximum radius of curvature below 8nm. The full AFM tip cone angle is 40° and even lower at the last 200nm near the AFM tip apex.

    The aluminum reflective coating enhances the laser reflectivity of the AFM cantilever by approximately 2.5 times.

    We recommend using SelfAdjust-Air AFM tips for measurements in ScanAsyst® PeakForce Tapping™* mode. Alternatively, the soft tapping mode HQ:NSC19/Al BS AFM tips can be used and some customers even prefer them for measurements in ScanAsyst®* mode. However, SelfAdjust-Air have been designed specifically for ScanAsyst® PeakForce Tapping™* mode application and are therefore the preferred choice. For more information on the HQ series soft tapping mode AFM tips check here.

    1-AFM Cantilevers Series

    AFM CantileverResonance Frequency, kHzForce Constant, N/m
    mintypicalmaxmintypicalmax
    SelfAdjust-Air 50 70 90 0.25 0.4 0.75
    HQ:NSC19/Al BS 25 65 120 0.05 0.5 2.3




    Application

    SelfAdjust-Air AFM tips can be used for imaging both hard samples and soft biological samples in ScanAsyst® PeakForce Tapping™* mode. The low interaction force allows preserving both the AFM tip and the sample, allowing very high resolution scans.

    "
    Bruker’s Tip Qualification module is used to assess the sharpness of a SelfAdjust-Air AFM tip based on a scan of the MikroMasch® PA01 AFM tip evaluation sample.

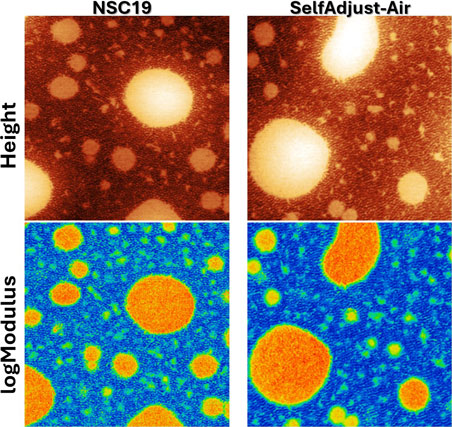

    SEBS-BH 2 µm AFM Images - MikroMasch® NSC19 Series and SelfAdjust-Air AFM Probes

    SEBS-BH 2 µm AFM Images - MikroMasch® NSC19 Series and SelfAdjust-Air AFM Probes

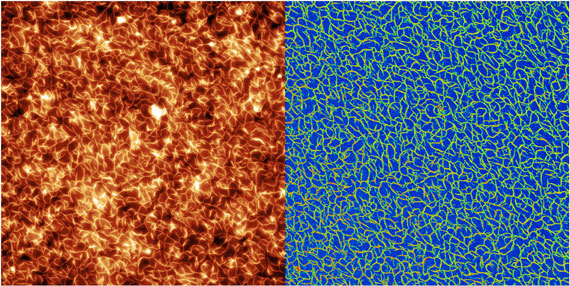

    OSC-Elastomer Blend 40 µm AFM Images – MikroMasch® SelfAdjust-Air AFM Probes

    OSC-Elastomer Blend 40 µm AFM Images – MikroMasch® SelfAdjust-Air AFM Probes

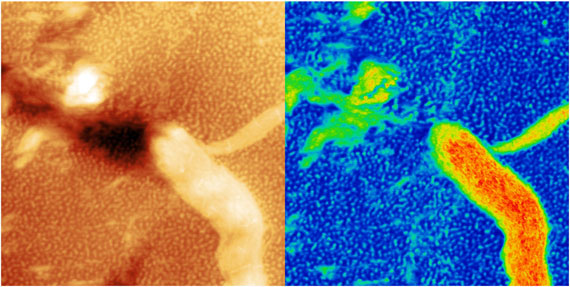

    OSC-Elastomer Blend 1.5 µm AFM Images after nanomachining – MikroMasch® SelfAdjust-Air AFM Probes

    OSC-Elastomer Blend 1.5 µm AFM Images after nanomachining – MikroMasch® SelfAdjust-Air AFM Probes
